LC垂直螺旋输送机

LC垂直螺旋输送机

产品简介:

LC型垂直螺旋输送机 一、原理 LC型垂直螺旋输送机是利用垂直圆形壳体内较高转速,螺旋体产生的离心力,借助物料与外壳的摩擦力,克服物料与螺旋表面之间的摩擦力,以及物料自重

全国24小时销售热线:

18632761563
分享到:

  一、原理
  LC型垂直螺旋输送机是使用垂直圆形壳体内较高转速,螺旋体孕育发生的离心力,借助物料与外壳的摩擦力,降服物料与螺旋外貌之间的摩擦力,以及物料自重引起的沿螺旋向下滑的分力,将物料向上提拔的输送机器。

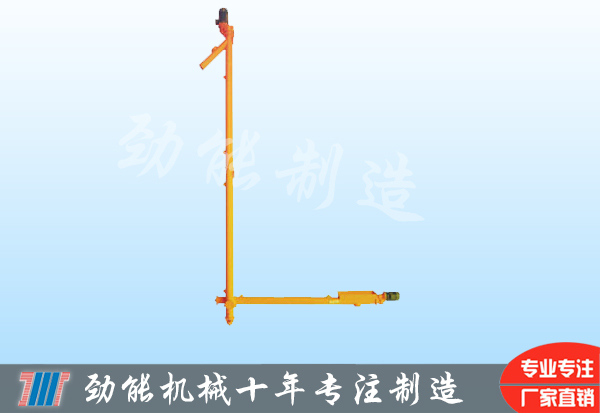

LC垂直螺旋输送机
  二、特点
  LC型垂直螺旋输送机布局简朴、占用空间小。
  LC型垂直螺旋绞龙的进料必须连结须要的进料压力,即接纳逼迫式进料方法。
  LC型垂直螺旋绞龙不实用运送活动性极强、比重很大、易变质、粘性大、易结块的物料,如湿砂等。


  三、规格参数表
规格
LC140
LC160
LC200
LC250
LC300
螺旋直径(mm)
140
164
187
240
290
螺旋转速(r/min)
300
300
300
300
220
输送量(m³/h)
10
15
25
40
60
输送高度(m)
13
15
15
14
12

泊头市劲能机械有限公司是一家以生产传动设备,输送设备为主,集科研、生产、销售为一体的企业。公司主要生产有摆线针轮减速机设备、星型卸料器设备、螺旋输送设备、粉尘加湿机设备设备四大系列。如果您对我们的产品感兴趣,请联系我们,我们会用为优质的产品和为诚挚的服务赢得您的满意!

LC type vertical screw conveyor
one, principle
LC type vertical screw conveyor is the use of vertical circular casing high rotational speed, helix produced by centrifugal force, with the help of the friction material and the shell, to overcome the friction between the material and spiral surface, as well as the material along the spiral to decline caused by gravity force component, lifting the material conveying machinery.

Second, the characteristics of
LC type vertical screw conveyor of simple structure, small footprint.
LC type vertical screw conveyor feed must maintain necessary feed pressure, namely using forced feeding way.
LC type vertical screw conveyor is not applicable to conveying strong liquidity, has a very large proportion, perishable materials, big viscosity, easy to agglomerate, such as wet sand, etc.

Three, specification parameter table


specifications
LC140
LC160
LC200
LC250
LC300
Spiral diameter(mm)
140
164
187
240
290
Screw rotation speed(r/min)
300
300
300
300
220
throughput(m³/h)
10
15
25
40
60
Conveying height(m)
13
15
15
14
12


Botou jinneng machinery co., LTD is a production transmission equipment, transportation equipment, integrating scientific research, production, sales for the integration of enterprises.The company mainly produces a cycloidal reducer, star discharger, screw conveyor equipment, dust humidifying machine equipment equipment four series.If you are interested in our products, please contact us, we will use the best quality products and most sincere service to win your satisfaction!
